Trimble Juno T41

Built for Work in the Real World

Empowering the Mobile Worker

Ultra-high frequency RFID in a rugged, powerful and compact form factor is now available.

The Juno T41 rugged handheld computer is designed to be long-lasting, from the battery to the processor, and to work through mishaps that would sideline lesser products.

The Juno T41 handheld is built to MIL-STD- 810G standards and all are available in your choice of IP65 or IP68 ratings to survive hostile conditions in the field: it can withstand driving rain and liquid immersion, corrosive environments, dust, shock, drops, vibration, prolonged UV exposure and extreme temperatures and altitudes.

All Juno T41 handhelds come in your choice of either Windows Embedded Handheld (WEHH) v 6.5 or Android 4.1 “Jelly Bean” operating systems.

The Juno T41 features an 800 MHz to 1 GHz processor, 512 MB of RAM and up to 32 GB of storage. The 4.3” high resolution Corning® Gorilla® Glass panel capacitive touchscreen is sunlight-readable and beautifully clear. Multi-touch support allows complex selections and controlled zoom to optimize the user experience with maps and detailed information. A capacitive stylus is available as an optional accessory.

Physical connection to other electronic devices is supported via the Juno T41 handheld’s custom connector that provides easy connectivity to a USB device, a 9-pin Serial device or a battery charger.

Cardinal Mobile is an

Authorized Trimble Service Provider.

GPS World Magazine's review of the Trimble Juno T41

Your business isn’t limited to inside the four walls. No matter your industry, if your people spend work hours outdoors, a rugged handheld is a cost-effective piece of equipment. Integrate the Juno T41 with the right set of features and functionality into your organization and take your applications to the next level.

Trimble Juno t41

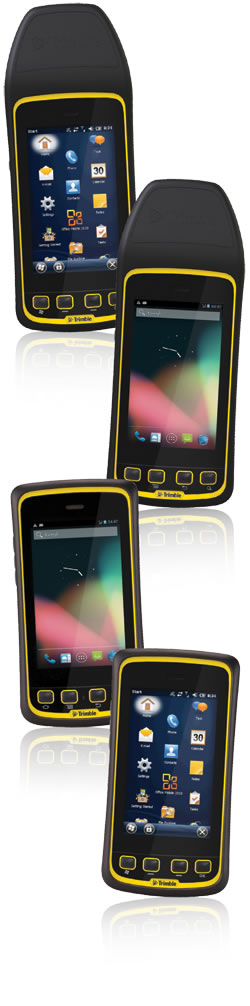

Juno T41

Model Options – Build Your Ideal Juno T41

Basic and Smartphone: the “C” and “X” Configurations

Tough, powerful and packed with features that take it far beyond “basic,” the Juno T41 is designed to replace BYOD smartphones with an 8 MP integrated camera, SMS text and 3.75 cellular data transfer capabilities on GSM networks worldwide. The 800 GHz or 1 GHz processor and 512 MB RAM will run your software fast and reliably. Choose either Android 4.1 or Microsoft WEHH 6.5 operating systems.

1D/2D Barcode IMAGER: the “S” Configuration

TrimbleScan Technology gives your solution an edge by reading an array of traditional barcodes as well as 1D and 2D matrix codes, captures signatures and images. All of these features are customizable using the Trimble “Scan Agent” application. Enterprises can also use the T41 Software Development Kit (SDK) to optimize for specific customer needs. Omni-directional reading capabilities along with high motion tolerance allows rapid, accurate barcode imaging no matter what the angle or orientation the unit is to the barcodes. Read as many as 200 barcodes per second with 100% accuracy.

Even if the unit is dropped on the concrete... it’s going to provide accurate information, without missing a beat.

Real-Time Enhanced GPS Accuracy : the “G” Configuration

Pair enhanced GPS with any other Juno T41 technology including the basic handheld computer, smartphone, or 1D/2D Imager to get extra value out of your existing workflows. The T41 G provides dramatic improvements in performance compared to other T41 models without the Enhanced GPS, allowing data collection in real-time at 1-2 meter accuracy, while gathering Raw Data Output for post-processing applications. The Juno T41 G supports the GPS L1 band, along with offering reliable performance in reduced signal environments. Mobile workers who have to move from place to place to collect GPS data on far-flung assets won’t have to waste time waiting for a warm-up: the Juno T41 G boasts an average cold start of less than 33 seconds, and an Assisted-GPS start of less than 3 seconds. The Juno T41 G is designed to work optimally with Trimble Positioning Services VRS.

Assets are everywhere now... map accurately and reliably no matter where your workers have to go.

The new Juno T41 “R” Configuration

The Juno T41 R integrates Trimble ThingMagic® technology into an unparalleled solution. It allows RFID use in a wide variety of industries and environments. Paired with a fixed reader, or as a stand-alone mobile reader, the Juno T41 R is an easy to integrate solution for high value asset inspection & maintenance and inventory management & tracking.

The Juno T41 R includes today’s EPCglobal Gen 2 RFID technology to guarantee unique identification of an asset. Gen 2 protocol allows the product to rapidly switch across many carrier channels during the radio signal transmission, reading tags at different frequencies in an almost simultaneous manner. The integrated antenna is circularly polarized, creating a design that eliminates the need to align the reader directly with the tag, for fast and accurate tag reads in real world conditions.

The Juno T41R is location aware, ready for use in different regions around the world. The FCC Certified and ACMA Certified T41R supports the 902 to 928 MHz and 920 to 926 MHz frequency bands, respectively, and is ready for use in the United States, Canada, Australia and New Zealand. The ETSI Certified T41R uses the 865.6 to 867.6 MHz range and is ready to use in European RFID frequencies.

The R configurations will not be combined with the “S” 1D/2D Barcode Imager configuration; but there is also a barcode scanning application that can be used with the 8 MP camera, that now comes standard with all Juno T41 models. Easy-to Use Application Programming Interfaces (APIs) for both the RFID settings and the barcode imager application allow rapid application development with multi-modal data capture.

Ultra-High Frequency Support:

UHF RFID is an increasingly commonplace technology using the 860 to 960 MHz frequency range to guarantee unique identification of an asset. The Juno T41 R will be ready to work with the size and style of tag that best fits any customized solution.

The Juno T41R can read a single square 5 cm2 (2 square inch) UHF RFID tag more than 3.5 meters (11+ feet) away from the unit in unobstructed space. In more challenging environments with higher levels of interference, such as a warehouse, an office setting or a crowded field site, the Juno T41R reads 5 cm2 tags consistently between 1-2 meters. Close quarter tagged assets (more than 10) reduce read range to approximately 0.5 to 1 meters; however, the Juno T41R will continue to read tags reliably even though the read range has decreased. The application reports the tagged asset to the user in order of signal strength.
